Description

Upgrade your solar charging system with an EPEVER MPPT solar charge controller designed for 12V and 24V solar systems. Available in 10A, 20A and 30A models, the Tracer series uses MPPT technology to efficiently track the solar panel's maximum power point and optimize battery charging.

The controller supports lead-acid and lithium battery types and features an LCD display for monitoring important system information. It is suitable for off-grid solar systems, RVs, backup power systems and other solar installations.

Key Features

• MPPT solar charging technology for efficient solar energy harvesting
• 10A, 20A and 30A models for different solar system requirements
• 12V/24V system voltage
• Supports lead-acid and lithium batteries
• LCD display for monitoring charging and system information
• MPPT tracking efficiency ≥99.5%
• Maximum conversion efficiency up to 98%
• RS485 communication interface
• Multiple charging and protection functions
• Common-negative grounding design
• Available Models

Battery Compatibility

The controller supports different battery types, including:

• Sealed lead-acid batteries
• Gel batteries
• Flooded lead-acid batteries
• Lithium batteries
• LiFePO4 batteries
• User-defined battery settings
• Communication and Monitoring

The built-in LCD display provides convenient access to charging and system information.

The controller also features an RS485 communication interface, allowing compatible monitoring and communication accessories to be used with the controller.

Choose the Right Model

Choose the Tracer1206AN 10A for smaller solar installations, the Tracer2206AN or Tracer2210AN 20A for medium-sized systems, or the Tracer3210AN 30A when higher charging current and solar input capacity are required.

Important: Always check the specifications of the selected model before installation, especially the maximum PV open-circuit voltage and maximum solar input power.

SPECIFICATIONS

Application: Charger Controller,Lighting Controller,Solar System Controller,Solar Working Station

Battery input voltage range: 8~32V

Battery type: Lead-acid/Lithium/User

Brand Name: EVSOLAR

Certification: CE,RoHS

Choice: yes

Communication interface: RS485(RJ45)

Display: LCD

Enclosure: IP30

Grounding: Common negative

High-concerned chemical: None

Is Smart Device: Yes

Maximum Current: 10A;20A;30A

Model Number: Tracer1206AN;Tracer2206AN;Tracer1210AN;Tracer2210AN;Tracer3210AN

Nominal System Voltage: 12V/24V auto work

Origin: Mainland China

Tracking efficiency: ≥99.5%

Work Time (h): 7*24h

EPEVER MPPT Solar Charge Controller 10A20A30A 12V/24V Auto Solar Panel Charger Regulator

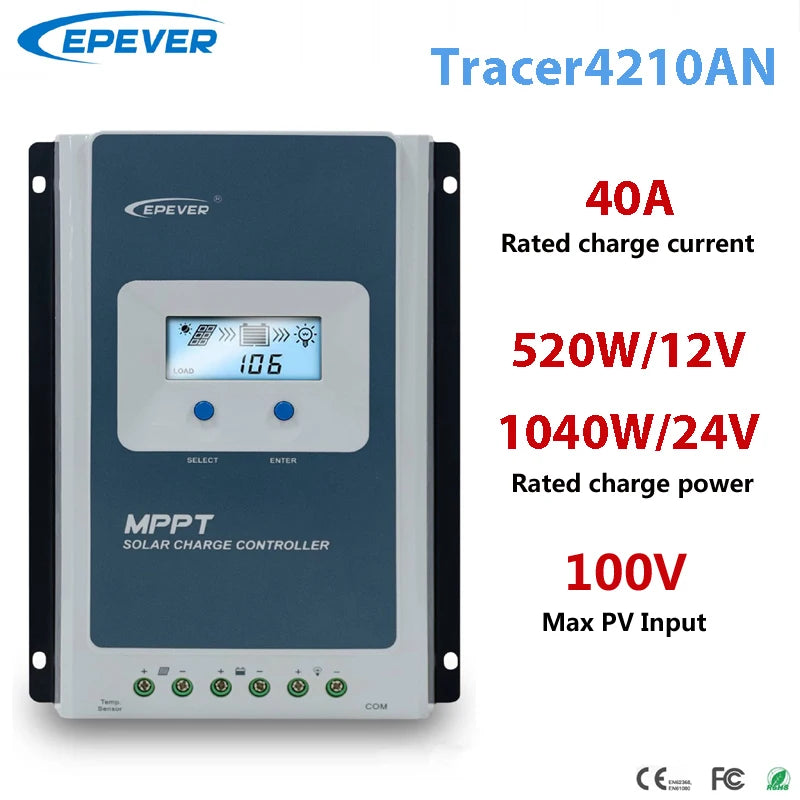

Tracer3210AN 1210AN 2210AN 1206AN 2206AN Tracer4210AN

Overview:

Tracer-AN (10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any stiuation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vividly.

Features:

• MPPT trackiung efficiency above 99.5%

• Maximum charge conversion efficiency as high as 98%

• Support lead-acid and lithium-ion batteries

• Multiple load work modes

• Charging power and current limitation function

• Hige-temperature charging power derating function

• Standards Modbus communication protocol with RS485 interface

• Real-time energy statistics function

Steps: Connect solar system in this order: 1.battery--> 2. load--> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.

• Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.

• DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse.

• If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

Electronic Protections:

• Battery Protection: Lithium Battery Low Temperature protection, Battery Over Discharge protection, Battery Over Voltage protection

• Load Protection: Load Overload protection, Load Short Circuit protection Controller Overheating protection, TVS High Voltage Transients protection

• PV Protection: PV Over Current/power Protection, PV Short Circuit protection, PV Reverse Polarity protection, Night Reverse Charging proection

How to program for Lithium Battery?

• Via Remote Meter (Accessories needed: MT50/MT52)

• Via PC Software (Accessories needed RS485 cable: CC-USB-RS485-150U)

• Via Phone APP (Accessories needed: WIF or BLE)

Package List:

• 1 x MPPT Solar Charging Controller

• 1 x User Manual (English)
