SPECIFICATIONS

Application: Charger Controller,Lighting Controller,Solar System Controller,Solar Working Station

Battery input voltage range: 8~32V

Battery type: Lead-acid/Lithium/User

Brand Name: EVSOLAR

Certification: CE,RoHS

Choice: yes

Communication interface: RS485(RJ45)

Display: LCD

Enclosure: IP30

Grounding: Common negative

High-concerned chemical: None

Is Smart Device: Yes

Maximum Current: 10A;20A;30A

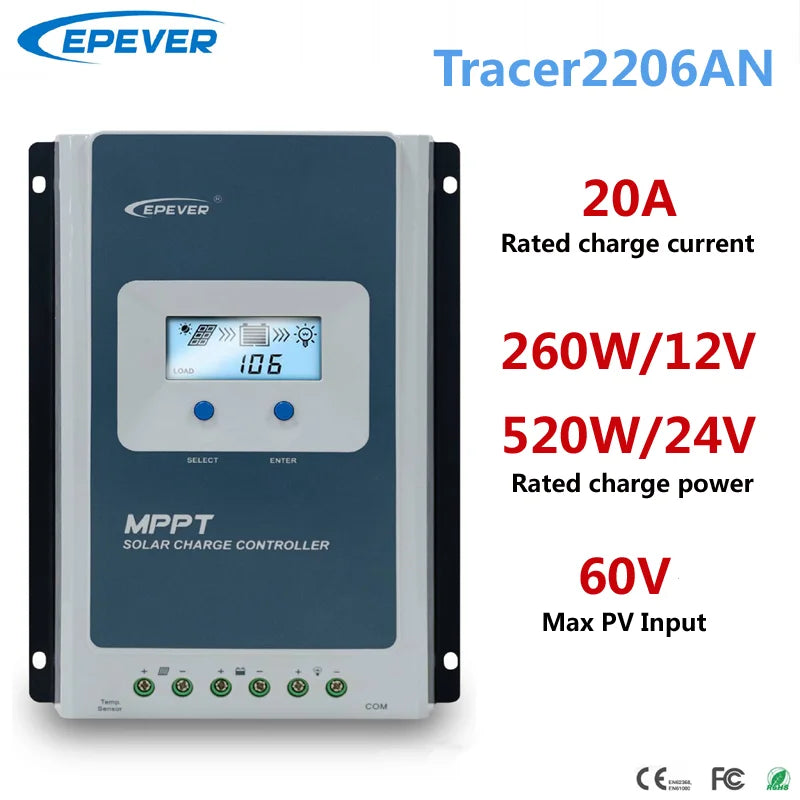

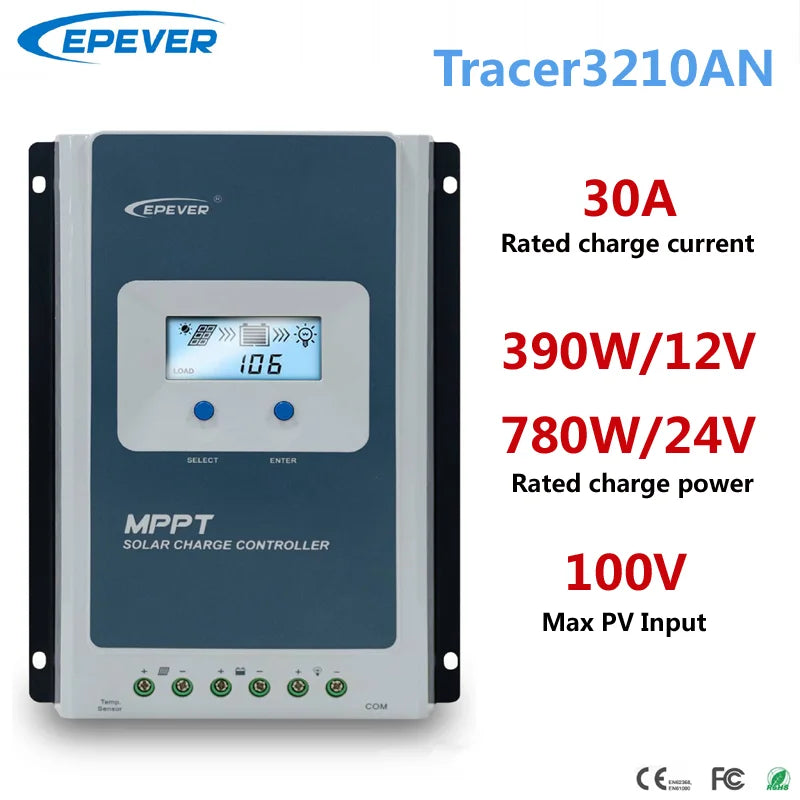

Model Number: Tracer1206AN;Tracer2206AN;Tracer1210AN;Tracer2210AN;Tracer3210AN

Nominal System Voltage: 12V/24V auto work

Origin: Mainland China

Tracking efficiency: ≥99.5%

Work Time (h): 7*24h

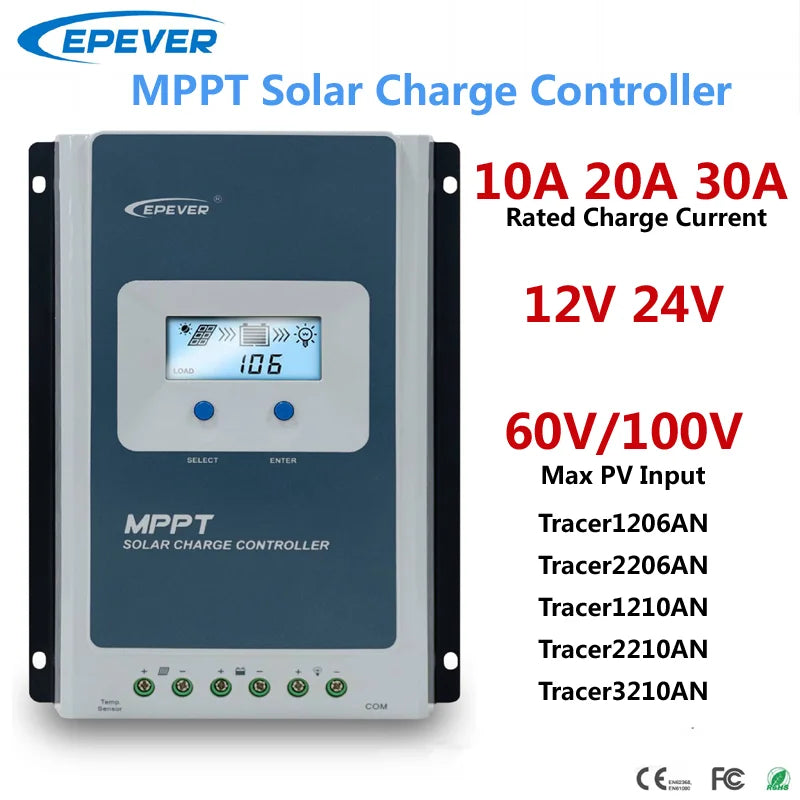

EPEVER MPPT Solar Charge Controller 10A20A30A 12V/24V Auto Solar Panel Charger Regulator

Tracer3210AN 1210AN 2210AN 1206AN 2206AN Tracer4210AN

Overview:

Tracer-AN (10A-40A) series charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any stiuation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multifunction LCD display the system status vividly.

Features:

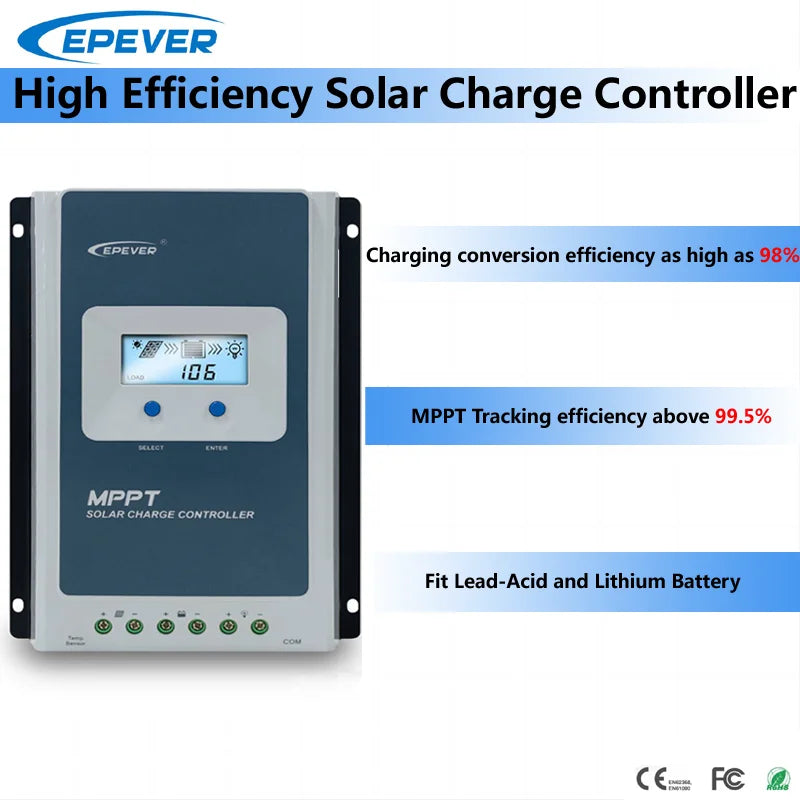

• MPPT trackiung efficiency above 99.5%

• Maximum charge conversion efficiency as high as 98%

• Support lead-acid and lithium-ion batteries

• Multiple load work modes

• Charging power and current limitation function

• Hige-temperature charging power derating function

• Standards Modbus communication protocol with RS485 interface

• Real-time energy statistics function

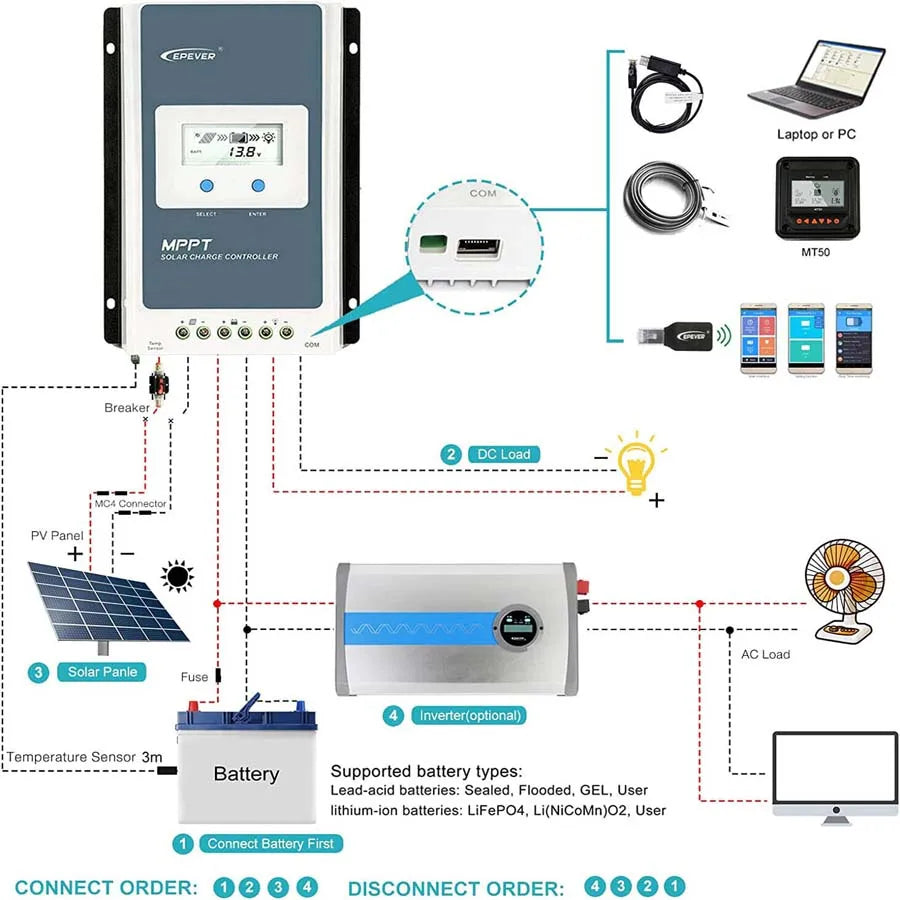

Steps: Connect solar system in this order: 1.battery--> 2. load--> 3.PV array, and disconnect solar system in the reverse order >3. >2. >1.

• Battery must be connected first! Never connect soalr panel array to controller Without/Before connect battery.

• DO NOT connect any inverter/wind/Alternator or Charger into the charge controller directly ! You should connect with battery and add fuse.

• If there is a long distance between the PV array and controller or between the controller and battery, larger size wires should be used to reduce the voltage drop and improve performance. (Recommended wire size is only for reference.)

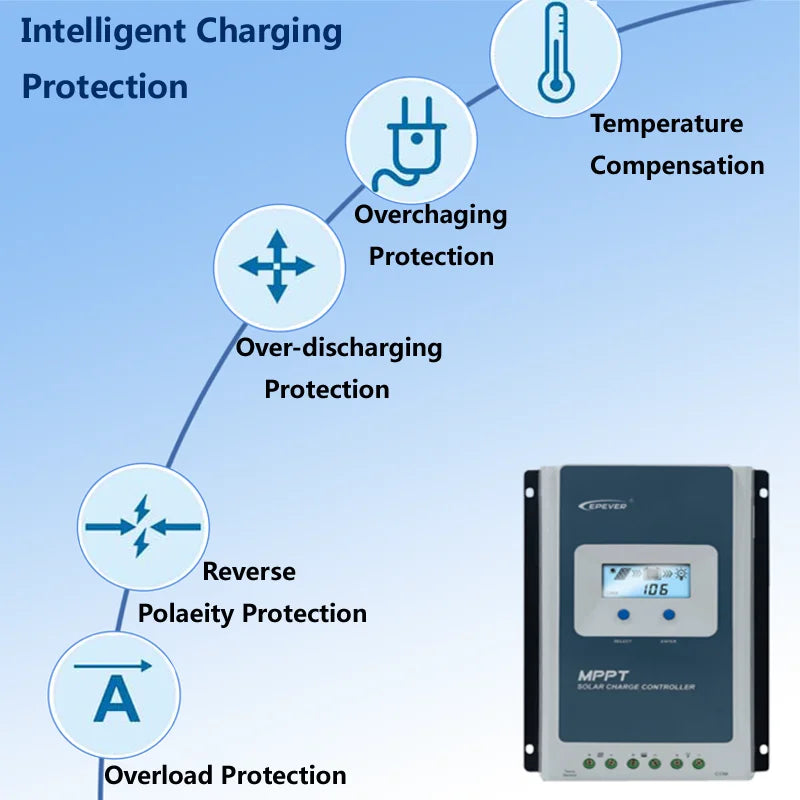

Electronic Protections:

• Battery Protection: Lithium Battery Low Temperature protection, Battery Over Discharge protection, Battery Over Voltage protection

• Load Protection: Load Overload protection, Load Short Circuit protection Controller Overheating protection, TVS High Voltage Transients protection

• PV Protection: PV Over Current/power Protection, PV Short Circuit protection, PV Reverse Polarity protection, Night Reverse Charging proection

How to program for Lithium Battery?

• Via Remote Meter (Accessories needed: MT50/MT52)

• Via PC Software (Accessories needed RS485 cable: CC-USB-RS485-150U)

• Via Phone APP (Accessories needed: WIF or BLE)

Package List:

• 1 x MPPT Solar Charging Controller

• 1 x User Manual (English)
